Tecfluid Turbine Flowmeter Series TM DN 80
0 / 10
Flow Meter
Tecfluid Turbine Flowmeter Series TM DN 80
Color
Electronic converters
Model APTM44
$0
About Product

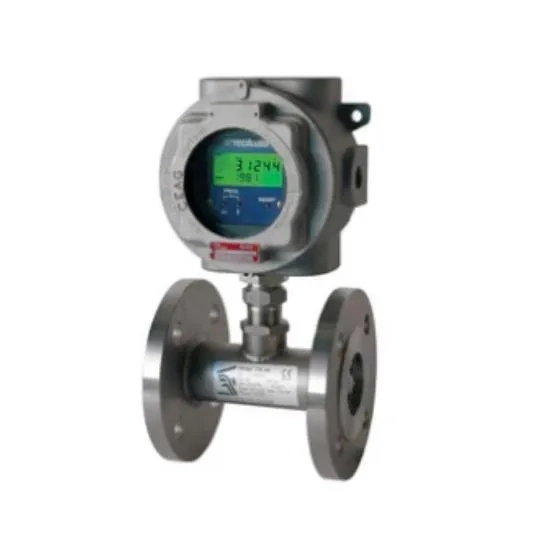

The Tecfluid Turbine Flowmeter (TM44 Series) is an extremely versatile instrument designed for precise flow measurement in clean, low viscosity liquids. While the initial description mentions variable area and metal tube flow meters for other media, the TM44 turbines specifically function as high-accuracy liquid flow meters or volumetric counters, depending on the integrated electronic system.
- Water meter
- DG Instruments Pty Ltd Water meter
- Jandakot Water meter
- Flow meter
Features
- Meter Body:Stainless Steel
- Unit:Cubic meters per hour (m^3 /h)
- Type: Mechanical
- Connections (Threads) (mm):80
- Max Temperature (Fahrenheit-Celsius):120-49
- Pressure Drop (PSI-KPa):Not Mentioned
- Max Working Pressure (PSI):232.06
- Min Water Flow Rate (Cubic meter per hour):15
- Max Water Flow Rate (Cubic meter per hour):150
- Weight (Kg):12
- Measurement Tolerance (±%):1
- NOMINAL METER DIAMETER (mm):80
- Max. intermittent water (cubic meter/h):180
- pulses/litre approx.:5
- ∆P at Qmax (mbar):310
