If you are looking for one of these meters but you don't know what features are important to consider, carefully follow this comprehensive guideline for choosing the best soil moisture meters based on your needs. The moisture content of soil, also referred to as water content, is an indicator of the amount of water present in soil. Moisture content is the ratio of the mass of water contained in the pore spaces of soil to the solid mass of particles in that material, expressed as a percentage.

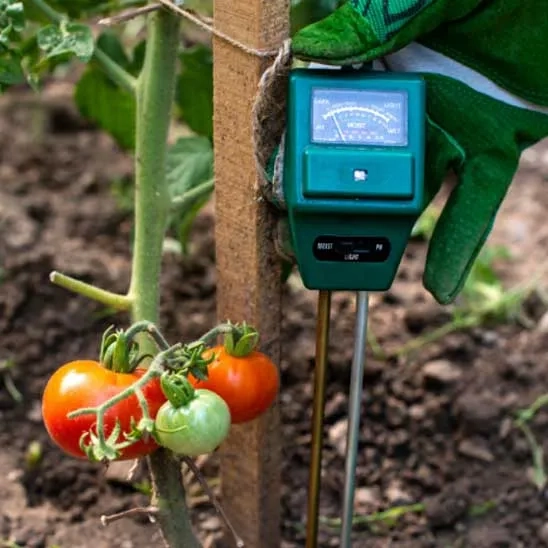

Measuring soil moisture allows the need for irrigation to be quantified in advance of a crop showing signs of distress. Knowing the soil moisture status enables highly efficient irrigation, providing the water as and when required, and eliminating the wasteful use of water when irrigation is not needed.
Soil moisture is a suitable predictor of a future crop yield but is also a significant contributor to agricultural water security (Rasheed et al., 2022). The most critical aspect of soil moisture is the depth of the soil water storage. The depth of the root zone, which is the area where plants can obtain water, is the primary factor controlling soil moisture. Soil moisture meters are one of the tools that can be used for measuring this parameter on soil . It is a perfect tool for both homeowners and professional farmers. Reading this buying guide will guide you through the realm of plant soil moisture meters.
1. Key Considerations When Choosing Soil Moisture Meter
In this buying guide section, we highlight the key considerations for buying a soil moisture meter. For selecting the best soil moisture meter, there are various factors that need to be considered. Here are some key factors to help you choose the right soil moisture meters:
1.1. Purpose and Application
Choosing your initial purpose is the first step toward selecting a soil moisture meter. For instance, are you a homeowner that uses the meter for your plant once a week, or are you a professional farmer whose soil moisture of your crop needs constant monitoring? By answering this question, you can set up your goal, enabling you to identify the right product based on your applications. For crop soil moisture monitoring on a large scale, sensors that can handle large-range measurements are required, providing real-time data reporting. This enables tracking soil moisture continuously. Meters with advanced features like remote monitoring via apps or computers are ideal for such large-scale applications. Moreover, you can focus on the meters that can measure the soil moisture in deeper levels of soil or have a broader measurement range ,since outdoors the soil moisture can be affected by extreme rain. Accuracy is another factor that should be considered since measuring soil moisture must be swift and accurate, especially during the irrigation plan to choose the best choice in the minimum time.
Soil moisture meters have a wide range of applications that serve various industries. They enable accurate soil moisture mapping in precision agriculture, improving crop management and irrigation effectiveness. In greenhouses and urban landscaping, the meters provide the optimal conditions for plant growth through measuring soil moisture levels. Environmental scientists use them to track soil health and patterns of moisture, providing valuable data for ecological studies. Moreover, soil moisture meters play an essential role in disaster management in that they are applied to predict and manage threats such as landslides whose stability can be measured in terms of soil moisture content.
1.2. Technological Integration and Features
The right soil moisture meter should combine various technologies to make sure of user-friendliness and improved performance. Factors such as connectivity, alerts, display and interface, and compatibility with other devices can elevate the soil moisture meter's performance and bring better performance for the users.
1.2.1. Connectivity and Alerts

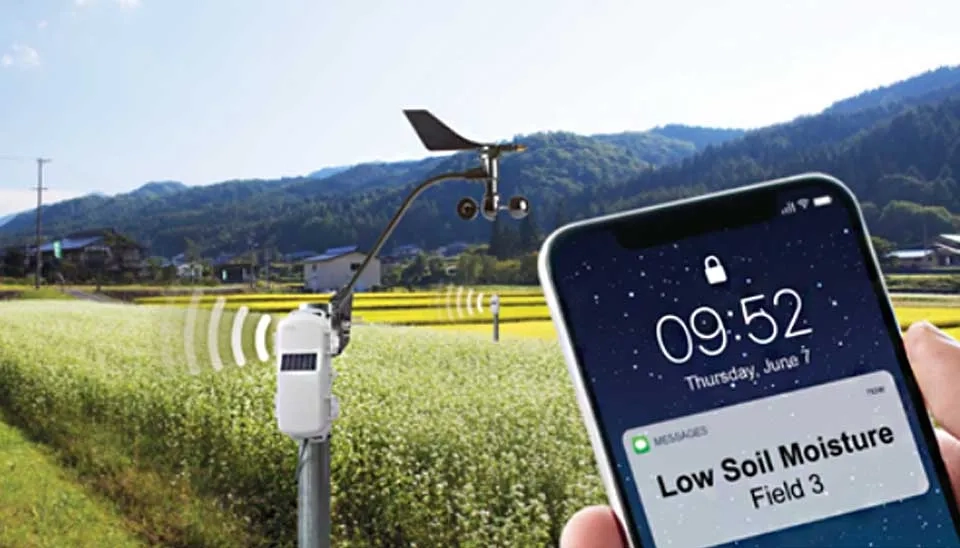

New state-of-the-art technologies such as the Internet of Things (IoT) are used pervasively in devices and soil moisture meters are not an exception. Bluetooth or Wi-Fi capabilities are now integrated in advanced soil moisture meters, providing communication between the meter and a smartphone, tablet, or computer, eliminating physical contacts with the meter, which helps users read the data remotely. For example, data on a mobile app in real-time can be monitored by the user, which facilitates users to assess the water quality.

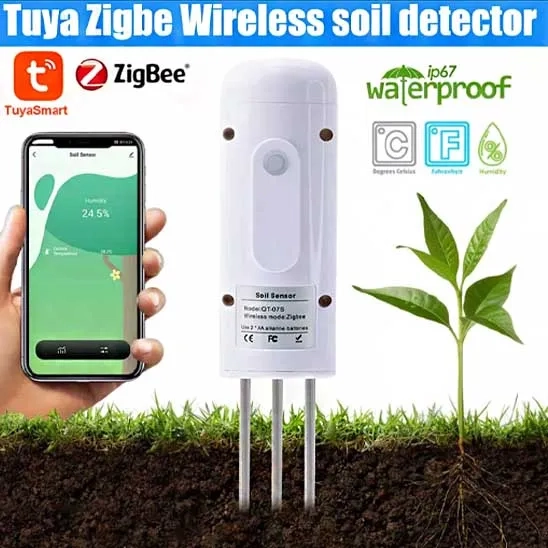

In addition to Wi-Fi or Bluetooth, there are 2 other communication ways that some meters offer: LoRa, which allows long-range communication and Zigbee, which is suitable for short-range communication.
Some soil moisture meters support cloud-based platforms, enabling users to store data and have an overview of historical data. If you have multiple meters, this function is particularly useful to compare the data. This feature usually comes with IoT that allows users to connect the soil moisture meters with other relevant sensors to get a holistic overview of soil conditions. These meters are usually intertwined with the concept of smart irrigation. The main objective of smart irrigation is to save and track the water.

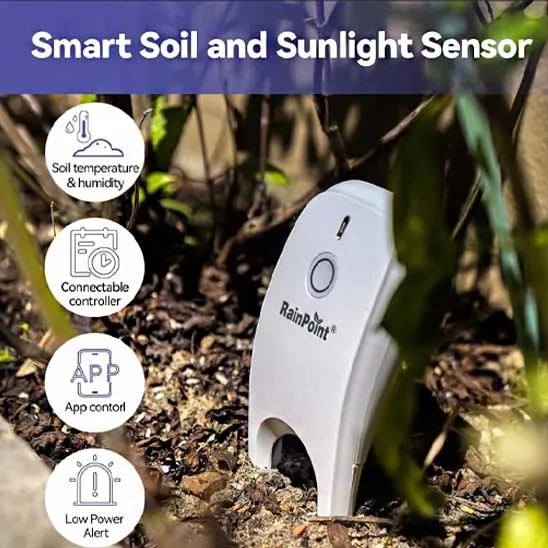

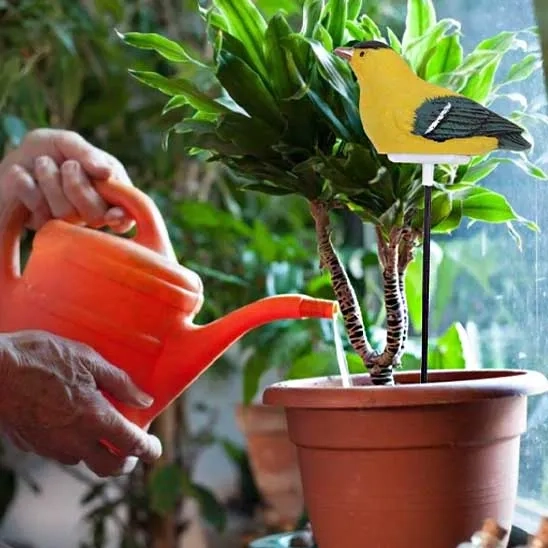

Alerts play a crucial role in soil moisture meters because if the moisture value changes rapidly, the crop yield will be affected, resulting in financial losses. In some soil moisture meters, a certain threshold can be set, and if the moisture exceeds or falls below the predefined range, the device can send an alert via email, SMS, or app notification to inform the customer. Or alerts can be defined in soil temperature or even weather forecasts. For instance, if heavy rain is expected, causing potential oversaturation, trigger the alert. This helps users take actions without wasting time. This function can be implemented with historical data as well. For instance, if a soil moisture meter consistently displays low moisture levels over time, the meter can issue alerts that further investigation or preventative measures are needed.
1.2.2. Display and Interface

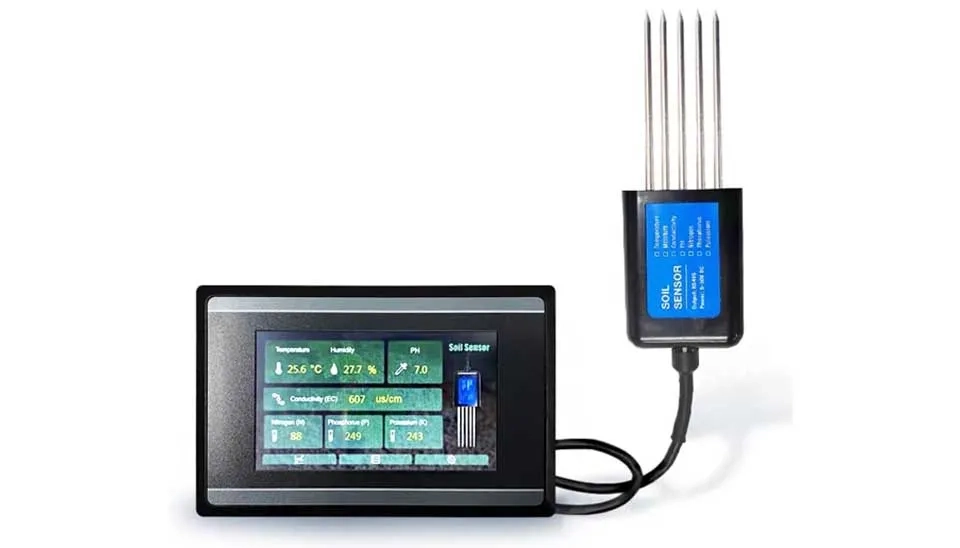

The display and interface of a soil moisture meter are important, especially for farmers who use the device outdoors, under direct sunlight. These conditions make reading the results difficult and a meter with an appropriate LCD can avoid mistakes as well as transferring the results to the user more explicitly. For more intuitive navigation, you may consider advanced models with touchscreen interfaces. This makes adjusting settings for calibration and alert thresholds easier. The relation between moisture and temperature is important and needs to be minimized. This feature can be achieved by multi-parameter displays in advanced soil moisture meters. Buttons and digital controls in meters help you navigate in calibration settings, graphs or alerts, providing users access to and modifying device settings quickly.
1.2.3. Compatibility with Other Devices

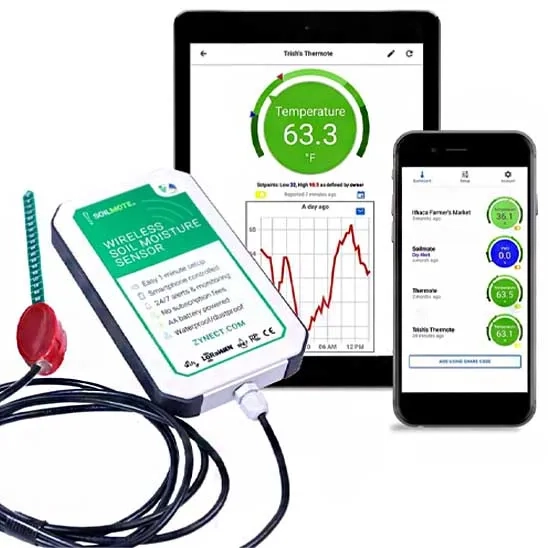

Modern soil moisture meters are incorporating IoT and cloud compatibility to connect with other devices for remote access and saving data. This is extremely helpful for smart irrigation and water system management. For example, the Soilmote wireless remote soil moisture meter can connect to smartphones for real-time monitoring and is compatible with cloud-based platforms. Also, these meters can be linked with smart irrigation systems, such as Rain Bird, Hunter Industries, or Netafim, where soil moisture values can be used for starting irrigation automatically. This cloud-based platform offers centralized monitoring of multiple devices for better monitoring. One of the cloud-based platforms that soil moisture meters support is WaterBit, offering an automated irrigation system. If you are using the soil moisture meter for laboratory purposes, try to choose devices that are compatible with computers, allowing import and export data. If you plan to use meters for a large database, consider meters that are open-source protocols, such as Modbus, MQTT, or OPC-UA, helping to integrate the meters into larger monitoring systems.
1.2.4. Sensor Types and Capabilities

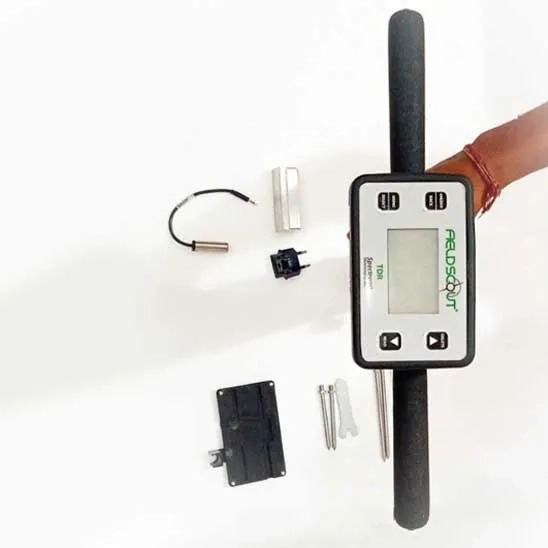

Soil moisture sensors can be found in numerous configurations to fit a variety of agricultural uses. The most fundamental are two-probe sensors, which analyze moisture through measurement of the resistance between two probes inserted in the ground and provide a direct moisture reading. More advanced sensors, such as multi-depth sensors, provide readings of moisture at various soil depths, which is particularly useful in tracking deep-rooted crops. Integrated multi-sensor systems take it a step further by integrating moisture, temperature, and salinity measurements in a single device, providing a more holistic view of soil conditions. Wireless sensor networks also allow large-scale monitoring by networking several sensors over agricultural fields, enabling real-time data collection and analysis over large areas.
1.3. Cost and Budget
One of the important factors when buying a soil moisture meter is the price. The soil moisture meters have a wide range of prices, from below $50 for small-scale usage to more than $500 for large-scale and professional usage, and setting your budget is important. Also, soil moisture meters come with additional costs such as field tools, installation, data storage, software for analysis, and maintenance.

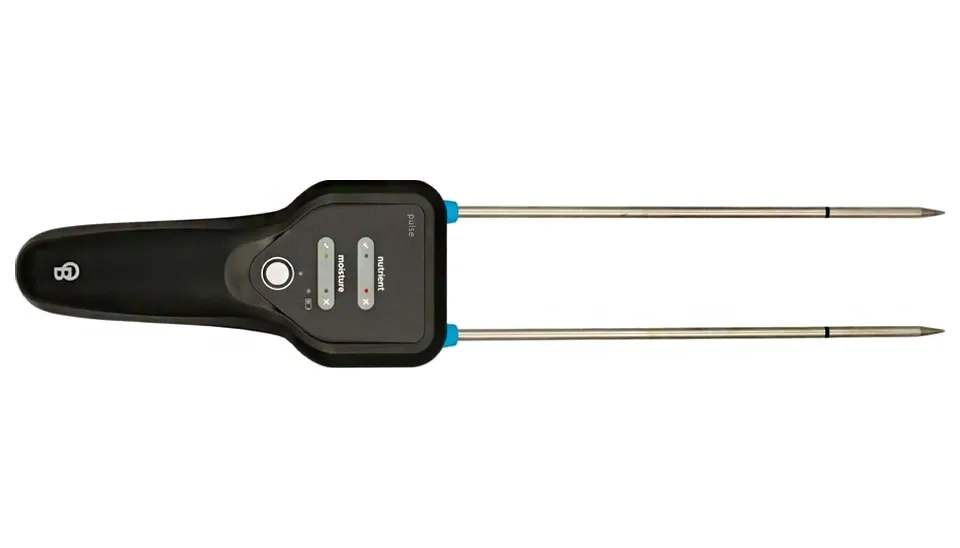

Meters below $100 are usually simple and handy for small-scale usage; they might support Wi-Fi or Bluetooth connections but have limited depth and accuracy. Next are middle-range meters (from $100 to $500) that have more accuracy and might include multiple sensors for measuring various parameters. The last price change is from $500 to more than $2000. These are high-end meters, providing real-time data transmission and measuring soil moisture at various depths for detailed analysis but bear in mind that the costs of installation and calibration services might be higher than other models.
After buying the soil moisture meter, there are some post-buying costs that need to be considered to maintain the accuracy of the meter, which will be further discussed in this part of the buying guideline. For example, calibration is needed after using a meter for a while, and the price varies from one model to another. More advanced soil moisture meters may also require maintenance, as their sensors may encounter issues that necessitate replacement. Battery is another thing that might require replacing, usually for portable meters.
1.4. Customer Service
Any source of issue might happen, including sensor failure, to you after buying a soil moisture meter, and you don’t want a device without further support from its manufacturer. A responsive company helps its users in each step to improve the best experience for the customer by helping in the calibration process to boost the accuracy of the device, and troubleshooting issues in cases of sensor malfunctions or connectivity issues. More advanced models need initial setup and configuration that companies can offer service in this area. Warranties are another factor that should be considered in case of failure, if the device is needed. Some companies offer free repairs or replacement options during the warranty period. One good way to find out the level of responsiveness of a company is to read the comments and reviews.
A company with excellent customer service offers online resources on its website, including manuals, video tutorials, and troubleshooting guides to assist customers. A company that is truly responsive also provides support beyond the warranty period, ensuring easy access to replacement parts. When customers encounter problems, companies should offer live chat, phone support, or email assistance to resolve issues. Additionally, some companies create online forums or social media groups where customers can share their experiences, which proves valuable as they discuss practical issues that products may have.
1.5. Materials and Durability
In this part of the buying guide, the material and durability of the meters are reviewed. Materials of the soil moisture meter can guarantee a comfortable usage of the device without any issues. Soil moisture meters generally include various parts; first and foremost are probes. The probes are the most important part of your meter, as they directly contact soil for measurements. Stainless steel probes are the most common probe material and they are more resistant to erosion and can withstand soil moisture with varying pH values. Another less common material for probes is copper, offering more and better conductivity but susceptible to erosion. Another part of the meter is the case or body of the device, which protects internal sensors and electronics. Most meters offer plastic body material because it is moisture resistant and lightweight, making working with devices more comfortable. However, in extreme environmental conditions, their performance might degrade. Other devices offer rubberized cases to resist water and boost the durability of the device. The meter’s body must be sealed to prevent water penetration. This is done by epoxy resin and silicone seals.
Some soil moisture meters are impact, water or corrosion resistant, making them ideal for outdoor usage in harsh environments. For example, the Vodeson 4-in-1 Plant Soil Moisture Meter has a waterproof and corrosion-resistant design that can remain in the soil continuously, needing only quarterly cleaning for optimal functionality.
1.6. Measurement Accuracy
In this section of the buying guide, we look at the measurement accuracy of the soil moisture meters. The measurement principles that are different for soil moisture meters. For a wider range of soil types, capacitive sensors are typically more accurate. While resistive sensors calculate resistance between two probes, the result can be affected by different conditions of the soil, such as salinity and temperature. Other, more expensive meter types are time domain reflectometry (TDR). These meters calculate the travel time of the electromagnetic pulse between two probes, resulting in more accurate measurements. There are different conditions related to soil that can affect the results of a measurement. First of all is soil type. Soils based on their ability to absorb soil affect the accuracy of the meters. For instance, clay soil absorbs water and can hold the soil moisture, while sandy soils drain quickly. Soil salinity is another parameter that can affect the measurement because high salinity can disrupt electrical conductivity, which the soil moisture meter uses. Soil temperature is important as well and can affect the resistive and capacitive sensors in soil moisture meters, leading to errors, although some meters offer temperature compensation algorithms to offset this effect. Another important element is that meters measure moisture in a specific depth and if the soil is heterogeneous, the soil moisture value can differ in other textures.
Soil conditions can impact the results as well. For example, many meters have optimum performance in a soil that is neither too dry nor too wet. Otherwise, the performance might be affected. The accuracy of the meters varies with each other. Take commercial soil moisture meters as examples, which offer ±3% to ±5% of the actual soil moisture content, while more professional meters, especially the TDR types, offer accuracy less than ±3% of the actual soil moisture content.
1.7. Installation Requirements and Maintenance

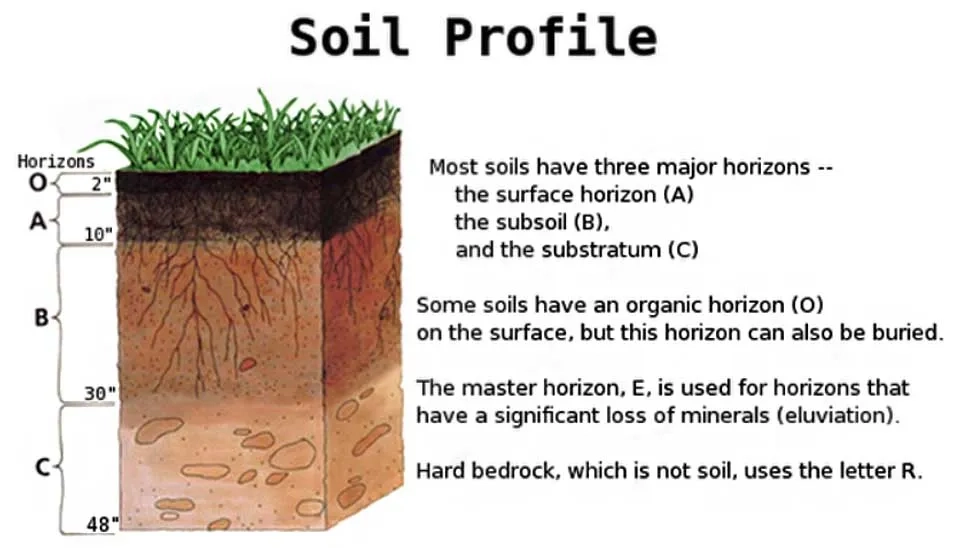

Soil moisture meters are user-friendly without any complex installation. However, here are some important elements that need to be considered: For installing the meter for continuous monitoring of soil, make sure that sensor is placed at the 15 to 30 cm (6–12 inches) depth, known as the root zone, because this area generally absorbs the most water. If you are using multiple meters, it is better to place them in different depths to get a broad picture of the soil moisture content in each layer of the soil. Another factor is sensor installation, making sure that the sensors probe in a vertical position, avoiding air gaps. The soil moisture meter is better placed in bare soils, avoiding large rocks or roots because they can affect soil contact.

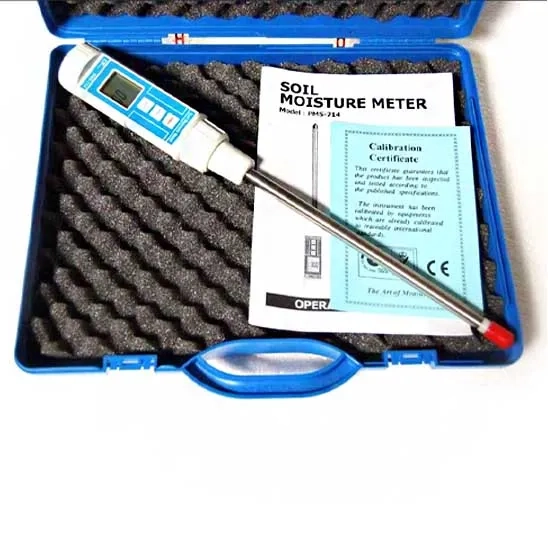

To ensure accurate results, calibration is needed, although the meters come with factory calibration. However, if the reading is off and doesn't seem right, recalibration is required. Regularly clean the probs from dirt, salts, or organic matter; if they accumulate, they might impact the results. Use distilled water for this process and after drying, reuse the meter. Environmental conditions, such as extreme temperatures, fertilizers, and pesticides, can damage the soil moisture meters; therefore, protect the device from those.
1.8. Power Source
One of the important parts of selecting the right soil moisture meter is the power source, which will be discussed in this section of the buying guide. The most common source of power for soil moisture meters is batteries. First, there are meters that are not using batteries; they are analog and affordable, but their accuracy is not significant. The most common type is alkaline batteries, which are affordable but if you are using the meter frequently, it is not a good choice because it may require frequent changing. For consistent and large-scale monitoring, stationary meters are required that use external power sources.
1.9. Product Ranking
In order to choose the best soil moisture meter, consider all the criteria that we have mentioned in this buying guide. Platforms like Amazon are a suitable environment to review and comment on the previous owners of the soil moisture meters. This can give you an overview of which product is better. Our article ‘‘7 Best Plant Soil Moisture Meters for Indoor and Outdoor Use in 2024‘‘ can act as the preliminary foundation for your choices and also can give you valuable insights about different meters. In this article, Bayesian ranking was utilized to rank different soil moisture meters in the market, with the XLUX T10 Soil Moisture Meter ranking first. This method uses both average rating and the number of total reviews.
In the article mentioned above, the XLUX T10 Soil Moisture Meter had the first rank among the available products. This model has a relatively large screen on which 10 scales are installed to display soil moisture, and the user can easily read the moisture level. As soon as the XLUX Moisture Meter is installed in the soil, it displays its moisture immediately and determines whether the plant needs watering or not.
2. Comparing Different Types of Soil Moisture Meters
In this buying guide, we analyze different types of soil moisture meters to help you choose the most suitable one. There are different types of soil moisture meters on the market that you can select based on your needs. Generally, there are 2 different types of soil moisture meters, including analog and digital. Each one offers unique features, but all of them can cover the buyers’ needs in measuring soil moisture.
2.1. Analog Soil Moisture Meter

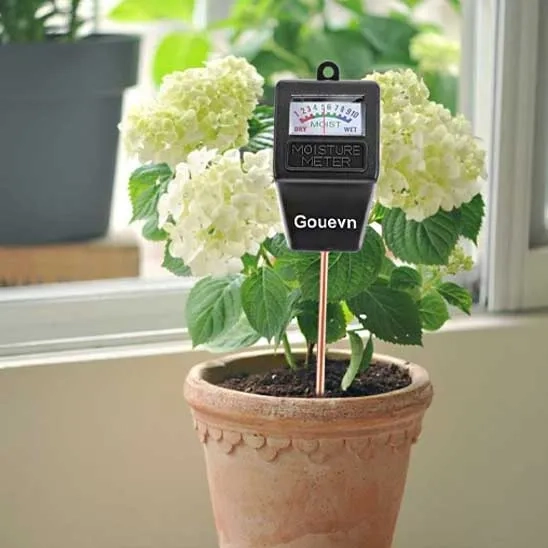

Analog soil moisture meters are simple and easy to use, using electrical resistance or capacitance to measure soil moisture in the soil. They are ‘analog’ because they don't have a digital screen and operate without any batteries. Meters with electrical resistance calculate the resistance between the probes that can vary in different moisture contents; generally, the drier the soil, the higher the resistance with less conductivity. Other meters use capacitance-based design, calculating differences in the dielectric constant of the soil because moisture can impact this feature. Although the analog meters are easy to use, use no batteries, and do not need setup, they generally have lesser accuracy than other soil moisture meters.
2.1. Digital Soil Moisture Meter

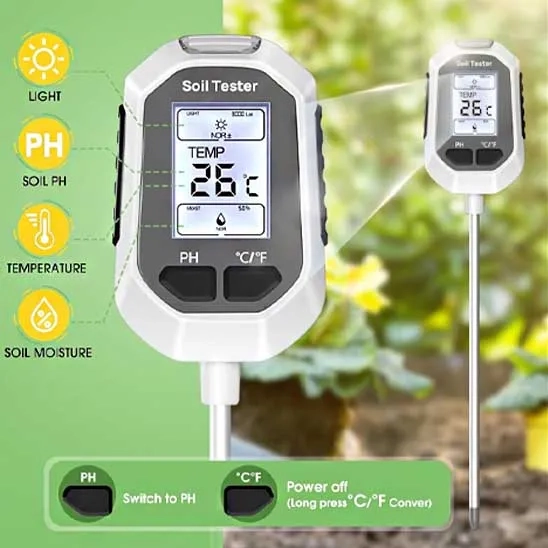

Digital soil moisture meters are smarter than analog ones, offering more features such as Wi-Fi, Bluetooth, and integration with other devices. For example, Wi-Fi-enabled soil moisture meters can link to your phone or computer through Wi-Fi, enabling you to check moisture levels from a distance. Models like the Moen Smart Wireless Soil Sensor are in this category. Soil moisture meters with a WiFi connection can offer smart monitoring and real-time data tracking with your smartphone or computer, automated alerts when soil moisture exceeds a predefined threshold, and integration with other smart devices in a cloud-based platform. Also, there are some important matters to be considered. These models usually need stable Wi-Fi connections for maintaining data reporting and remote sensing functionality; they are more expensive than other models. Moreover, they might need smartphone apps or cloud services.
Digital soil moisture meters use batteries. They generally possess a more compact design and are simpler to operate in areas where power sources are not accessible. They are convenient and easy to carry. Also, by using them frequently, the battery can drain quickly. Therefore, they might introduce additional costs for you.
3. Assessing Your Specific Needs Before Purchase
Your needs are the priority for buying suitable soil moisture meters; it is vital to evaluate your particular needs to select a device that adequately fulfills your requirements. This includes evaluating measurement requirements, examining compatibility with your current system, and allocating a reasonable budget. This can assure that you will make an informed decision by considering all the factors while fulfilling your usage objective.
3.1. Calculate Your Requirements
Determining your requirements means considering factors, including the type of soil being tested, the measurement range, accuracy needed, and how you plan to use the meter. This aids you in selecting the best option, preventing financial loss. First of all, take into account the soil type that is being measured. There are a relatively vast majority of soil types, such as agricultural soil, forest soil, urban soil, or arid land soil. The soil type is important because moisture content significantly varies in different soil types, ranging from very low in dry or sandy soils to higher in moist or clay-rich soils. Soil moisture meter measurements are specific, and the readings will vary significantly depending on the environmental conditions and soil characteristics. Since there is a relatively wide range for moisture in the soil, selecting the right soil moisture meters becomes essential. For example, moisture content in agricultural soils is from 10% to 40%, while forest soil has a higher soil moisture capacity up to 50%. Make sure to choose a device that covers a full range of soil moisture values that you wish to measure, because if the range exceeds, the results could be inaccurate or unreadable for you. Precision is another element that you need to consider based on your applications. Generally, the higher the moisture value, the greater the error in accuracy. However, generally, meters offer ±3% to ±5% of the actual soil moisture content, while more professional meters, especially the TDR types, offer accuracy less than ±3% of the actual soil moisture content.
3.2 Evaluate the Existing System
The new soil moisture meter that you want to buy must be compatible with your current system, preventing unnecessary issues during installation or use. For example, if you have a centralized monitoring system that uses Wi-Fi or cloud platforms with multiple soil moisture meters, make sure that the new device is compatible with your other tools either for a better experience or data monitoring. Also, if your current system does not support Wi-Fi connections, it is worth it to update it with these kinds of technologies in order to get a better understanding of the soil moisture values. Advanced soil moisture meters require frequent calibration and maintenance to maintain their performance. Therefore, if your current system needs regular calibration, you can consider switching to a model with automatic calibration or minimal maintenance capabilities. Always check the power source when buying new soil moisture meters that are compatible with your other device. It is better that all the meters and sensors use the same power sources and are compatible with each other. The environment that you wish to use the meters in is another element. For example, if the meter is used outside, direct sunlight can cause overheating, leading to failure and inaccurate measurement of the device.
3.3. Set Your Budget
Price is an important element that can have a major impact on your options. The price range is broad and depends on several features, including the type of soil moisture meter, accuracy, measurement range, brand and additional features. Soil moisture prices can vary significantly from analog meters, which can cause below $10 for testing the soil moisture at the house to over $500 for professional and large-scale usage. The advanced model includes features like data logging, wireless connectivity, multi-parameter measurement, and long-lasting reliability. It is notable that users must consider additional costs that come with a soil moisture meter, such as installation, potential maintenance, and battery replacement fees if you use digital soil moisture meters. For example, analog models like Gouevn G01 Plant Soil Moisture Meter ($8.97) have prices below $20; however, they are simple and handy for small-scale usage. Digital soil moisture meters with a price below $100 might support Wi-Fi or Bluetooth connections but have limited depth and accuracy. Next are middle-range meters (from $100 to $500) that have more accuracy and might include multiple sensors for measuring various parameters. Meters like METPULSE Pulse Meter Water 3-in-1 ($318) are in this range. The last price change is from $500 to more than $2000. These are high-end meters, providing real-time data transmission and measuring soil moisture at various depths for detailed analysis, but bear in mind that costs of installation and calibration services might be higher than for other models.
4. Mistakes to Avoid When Choosing a Soil Moisture Meter
In this buying guide section, we highlight the common mistakes that users make.There are several mistakes that need to be avoided when buying a soil moisture meter. Ignoring the soil type would be the first one. There are different types of soil and the meter might not be accurate in all of them. For example, measuring soil moisture in saline or rocky soils is changing and not all meters can deliver accurate results in these soil types. Moreover, soil structure is important as well , since measuring soil moisture content in heterogeneous soils is more challenging and moisture levels can differ significantly. Thus, if you plan to measure on this soil, consider meters with the ability to measure soil moisture in multiple depths, offering a long probe. Consider the environment you plan to work with the meter in as well. If the meter will be used in a harsh environment and under direct sunlight, consider more durable material rather than only plastic meters. Utilizing soil moisture meters for constant and long-term monitoring is needed for data logging capabilities; therefore, look for the meters that offer this feature. At the end, investigate the customer service of the company that you want to buy its product from because this can make a significant difference if troubleshooting or replacement parts are needed. A good company feels responsible toward its product.
5. Checklist for Choosing the Best Water Level Monitor
Have you recognized the soil moisture meter type? (analog, digital)
Have you identified the main soil type you intend to use the device on? (e.g., clay, sandy, etc.)
Have you identified the main application? (e.g., indoor, outdoor, etc.)
Does the soil moisture meter come with the technological features you need? (Consider connectivity, such as Wi-Fi or Bluetooth connections, and how they integrate with smart home systems, smartphones, tablets, or computers.)
Have you considered reliable connectivity and prompt alerts? (e.g., SMS, email, or app notifications when moisture values fall or are below a threshold)
Is the display and interface easy to use and simple to read? (e.g., LCD screens or LED indicators, or touch screens that show real-time data)
Does the cost correlate with your budget while maintaining the overall requirements and keeping the right balance between expense, features, and durability over time?
Have you looked into the customer service and availability options? (e.g., warranty, professional assistance , return policy, rapid delivery, packaging, free monitoring service and responsiveness)
Are the materials durable and align with the environment in which you intend to use the products? ( plastic, rubber coating, steel stainless probe)
Have you considered measurement accuracy?
Does the meter you select require installation, initial setup or maintenance needs?
Have you chosen the appropriate power source for your application?
Have you searched product rankings and reviews to ensure reliability? (e.g.,
Bayesian Rank, buying guides, reviews, comments, etc.)
6. Where to Buy Soil Moisture Meters
In this buying guide section, we analyze different locations where users can buy soil moisture meters .There are several popular companies that offer a broad spectrum of soil moisture meters. One of them is Amazon, a trustworthy company that provides a relatively wide range of soil moisture meters, from small and cheaper ones to large-scale industrial use. You can browse from different soil moisture meters, compare their features and ratings, and read reviews and comments of other users. This is extremely useful because it is the result of using the devices in practice and any flaws and miss functions can be detected from comments. Amazon offers secure purchasing, fast shipping and customer service. Its service is relatively global but its main shipping location is in the USA. Walmart is another reputable website that offers the same features as Amazon. However, its variety of products is lower and it also provides physical stores for in-person purchases, especially in the USA and Canada. Another website is Alibaba that offers bulk purchasing for retailers that need more than one product.
7. Conclusion
This buying guideline offered a holistic overview of purchasing soil moisture meters, assisting buyers with valuable information for their specific needs and matching them with the most suitable type of device. This buying guideline is useful for both homeowners and professional users. Covering analog soil moisture meters , which are suitable for home owners with minimum use; they are cheap and do not need calibration and maintenance costs. Selecting the right soil moisture meter involves evaluating features and factors like power source, accuracy requirements, and integration with other devices. With this comprehensive buying guide of soil moisture meters, users can select a device that not only meets their needs but also adapts to future requirements, ensuring efficient water management and potentially saving on maintenance and operational costs.
