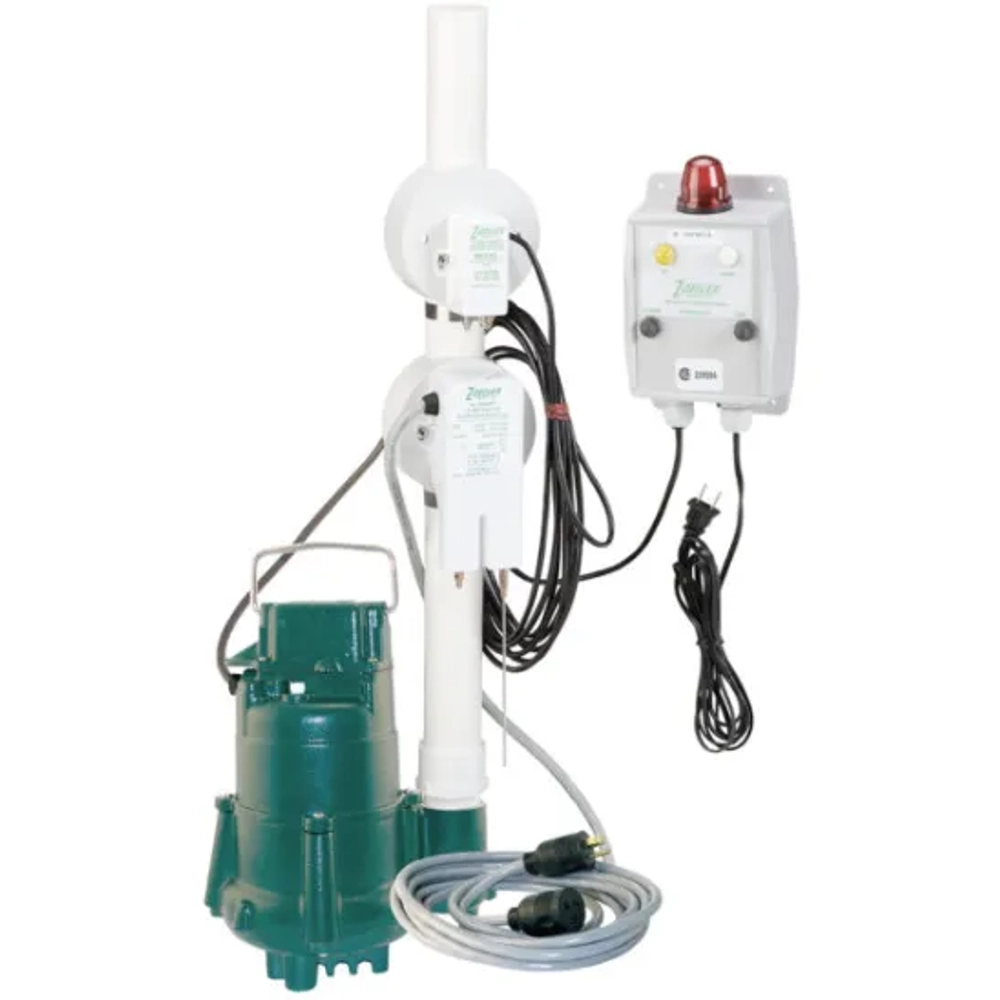

Elevator sump system for oil and water separation with a green pump, alarm box, and float assembly.

940 Oil Guard System with N57

Name: 940 Oil Guard System with N57
Brand: Zoeller Pump Company

About this product

The Zoeller Model 940 Oil Guard® System is a complete, plug-and-play package engineered specifically for elevator sump applications. Its core function is environmental protection—it reliably removes water from the basin while leaving oil contamination behind. System Components & Features 1. Model 57 Submersible Pump This is a compact, nonautomatic pump rated for 3/10 HP and 115 V. It's built for durability in demanding environments, with the switch case, motor housing, and pump housing all constructed from resilient cast iron. For superior corrosion resistance, the handle, hardware, and ID tag are made of stainless steel. 2. Oil Smart® Pump Switch (Controller) This is an industrial quality, UL508-listed piggyback switch that uses 304 stainless steel sensor probes. The probes are key: they distinguish between oil and water. The switch signals the pump to run when it senses water and immediately turns the pump off when it senses oil or air. 3. Oil Smart® Pump Alarm Housed in a NEMA 4X enclosure, this alarm warns of excessively high liquid levels. It provides an audible alarm and illuminates a red beacon for immediate visual warning. The alarm distinguishes between two issues: a yellow light for high oil and a white light for high water. The panel includes dry contacts for both high-level indicators, enabling connection to a remote monitoring system. The alarm unit comes with a 20 ′ power cord for easy connection to a 115 V outlet. The Model 940 Oil Guard® System offers a comprehensive and dependable solution for managing water in elevator sumps while adhering to strict environmental safety standards.
