Flow Meter
ELECTROMAGNETIC FLOW METER
New
01 / 02About this product

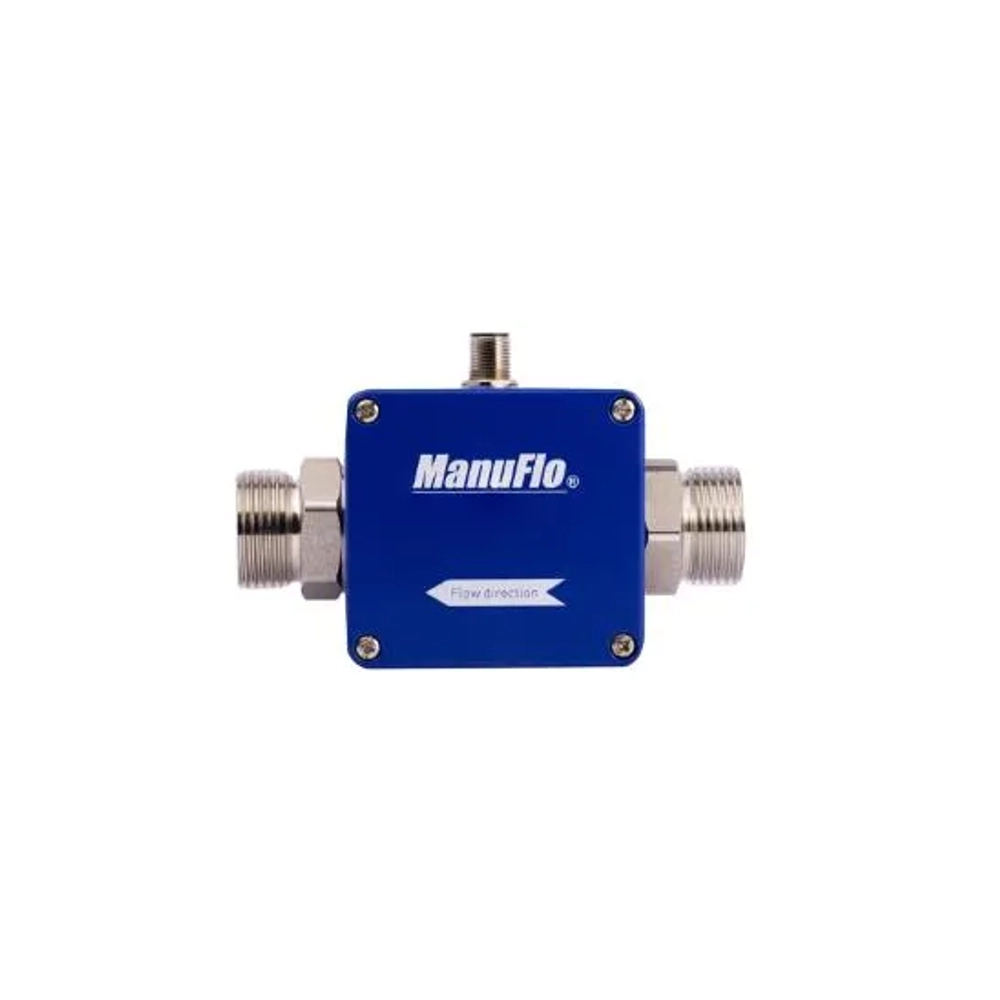

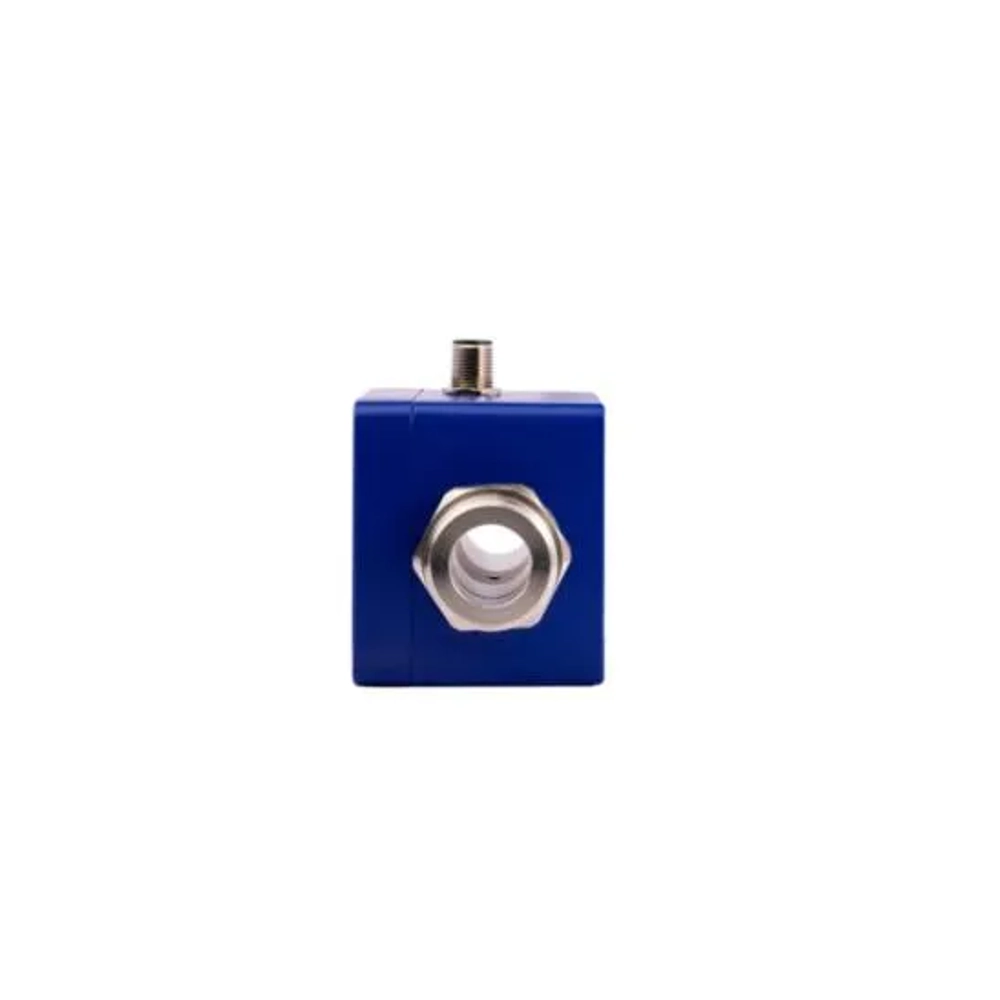

The CMM Mini-Mag is a powerful, low-cost compact electromagnetic flowmeter ideal for industrial liquid metering and batching applications. Its unique design features the converter/processor built directly into the sensor primary, creating a very light and compact package across sizes from 15mm(1/2”) to 25mm(1”). With an obstruction-free bore and no moving parts, the CMM Mini-Mag virtually eliminates head losses and ongoing maintenance. Built with a PEEK sensor tube and Stainless Steel 316 electrodes, it accurately measures highly conductive and chemically aggressive liquids up to 90 ∘ C process temperature, regardless of viscosity or specific gravity variations.
- Water meter
- ManuFlo water meter
- Brookvale water meter
- Flow meter
Specifications
- Meter Body
- Stainless Steel
- Unit
- Liters per minute (L/min)
- Type
- Electromagnetic
