Flomec TM Series PVC Water Meters

About this product

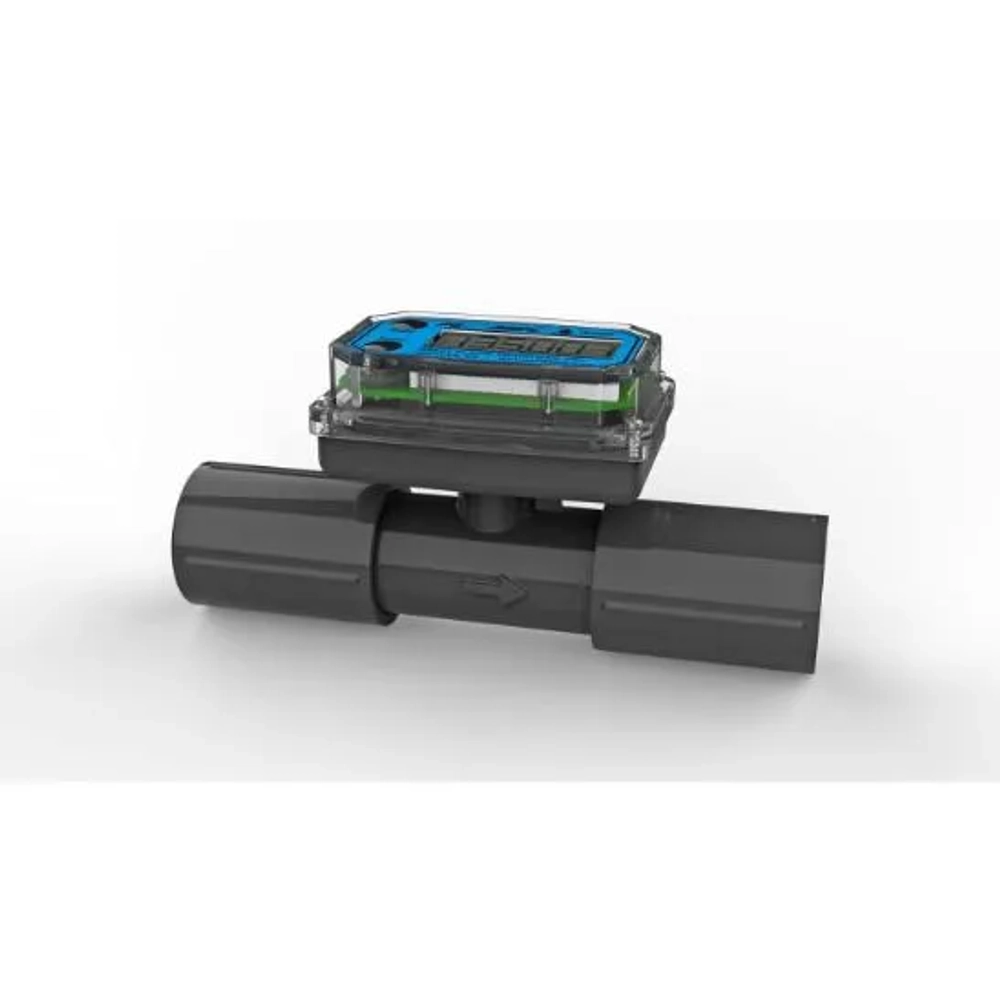

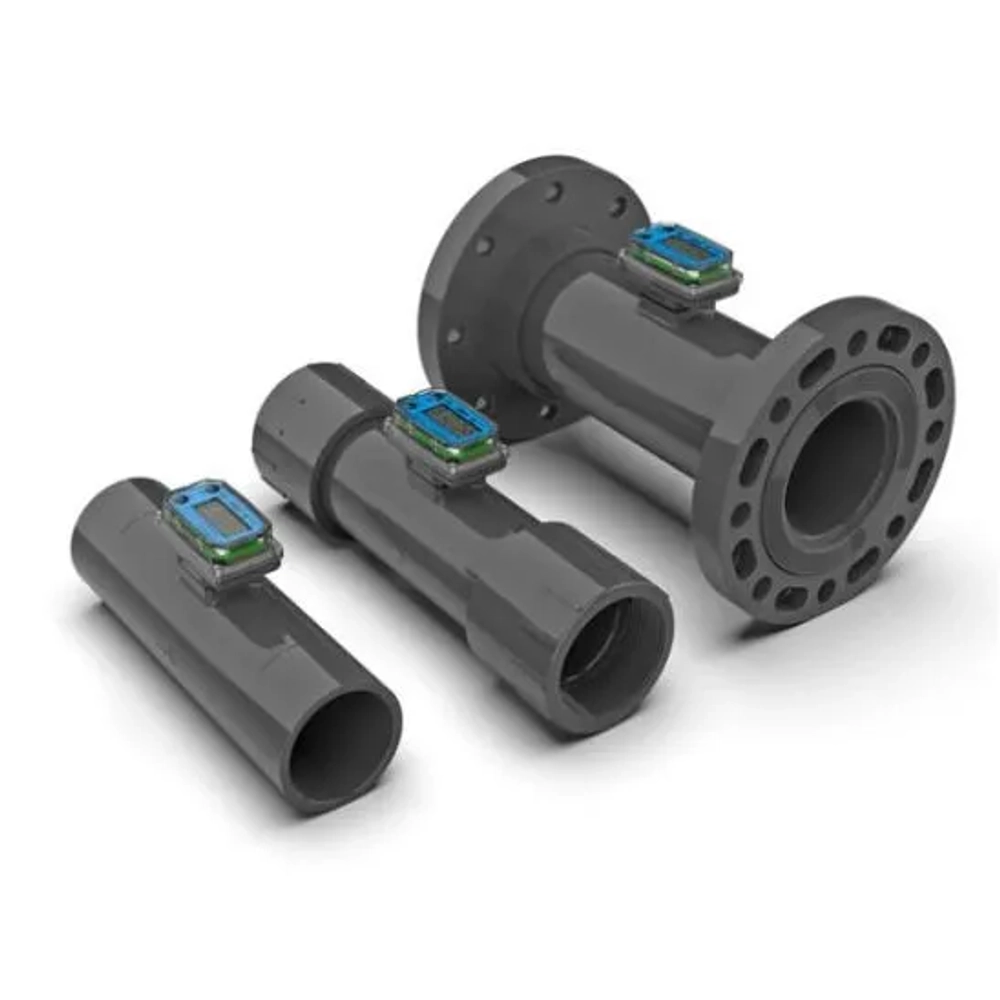

The Flomec TM series Inline Flow Meters are an excellent and economical alternative to traditional devices, suitable for a vast array of water monitoring applications. These digital flow meters are constructed from durable PVC and are available in seven sizes, ranging from 1/2” to 4” (15 mm to 100 mm), offering a wide flow range and exceptionally low pressure drop. Advanced Features & System Integration The TM series is equipped with the Flomec Q9 computer display, the latest version featuring a 2-year battery life and an easy-to-use interface. The Q9 clearly indicates flow rate, reset total, and accumulative total. Connectivity: The series supports universal connection via male (spigot) end fittings, with optional Female NPT, BSP fittings, and ANSI 150 lb flanges for larger meters. Connections can be glued, screwed, or flanged. Outputs & Diagnostics: Optional plug-in boards allow for field retrofit of key outputs, including 4-20mA, scaled pulse, and external power supply, making integration into process control systems simple. The Q9 also features a low battery indication and custom unit display. Ideal Applications for the Flomec TM Series: These versatile flow meters excel in monitoring water flow across critical processes, including: Water Treatment and Wastewater Treatment Water Batching and Process Water systems Irrigation and Cooling Systems Chemical Feed Systems

• Water meter
• B.E.S. Flowmeters water meter
• Melbourne water meter
• Flow meter

Specifications
