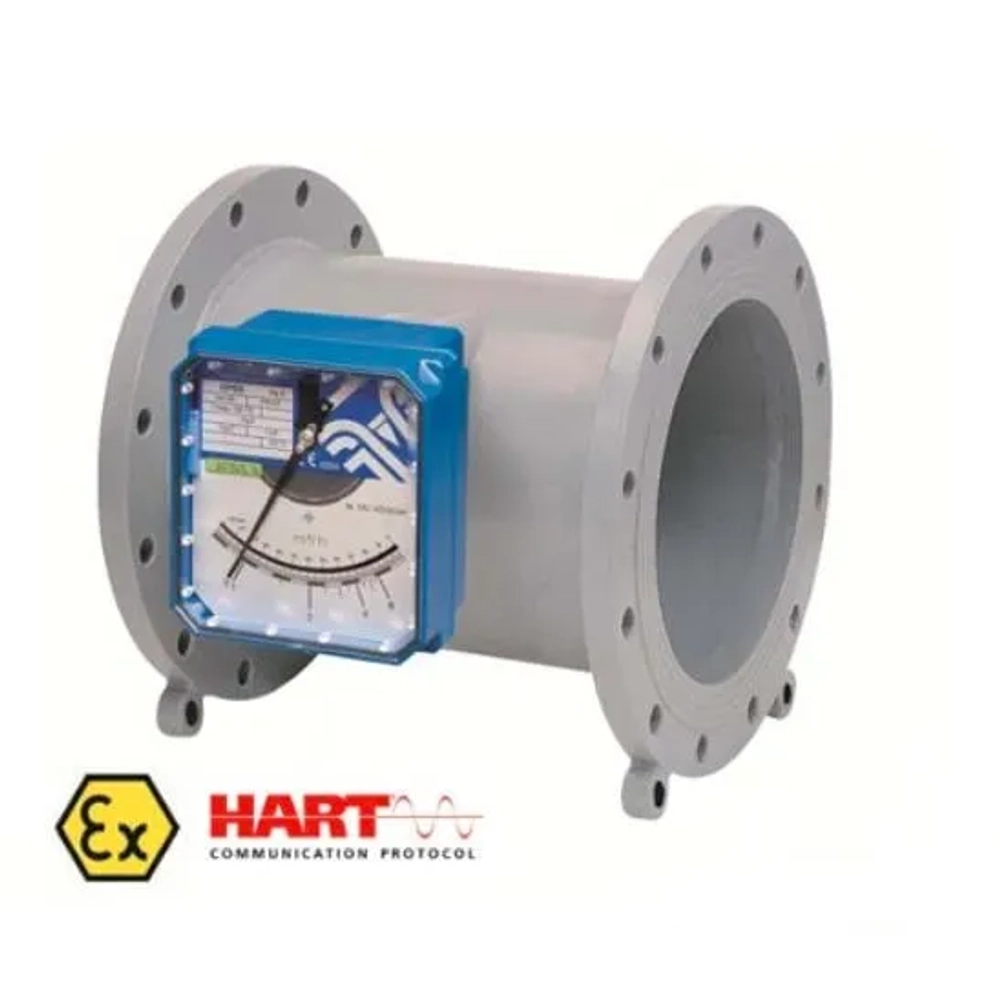

Tecfluid DP65 Target Disk Flow Meters DN 100

Name: Tecfluid DP65 Target Disk Flow Meters DN 100
Brand: Midstream Instrumentation

About this product

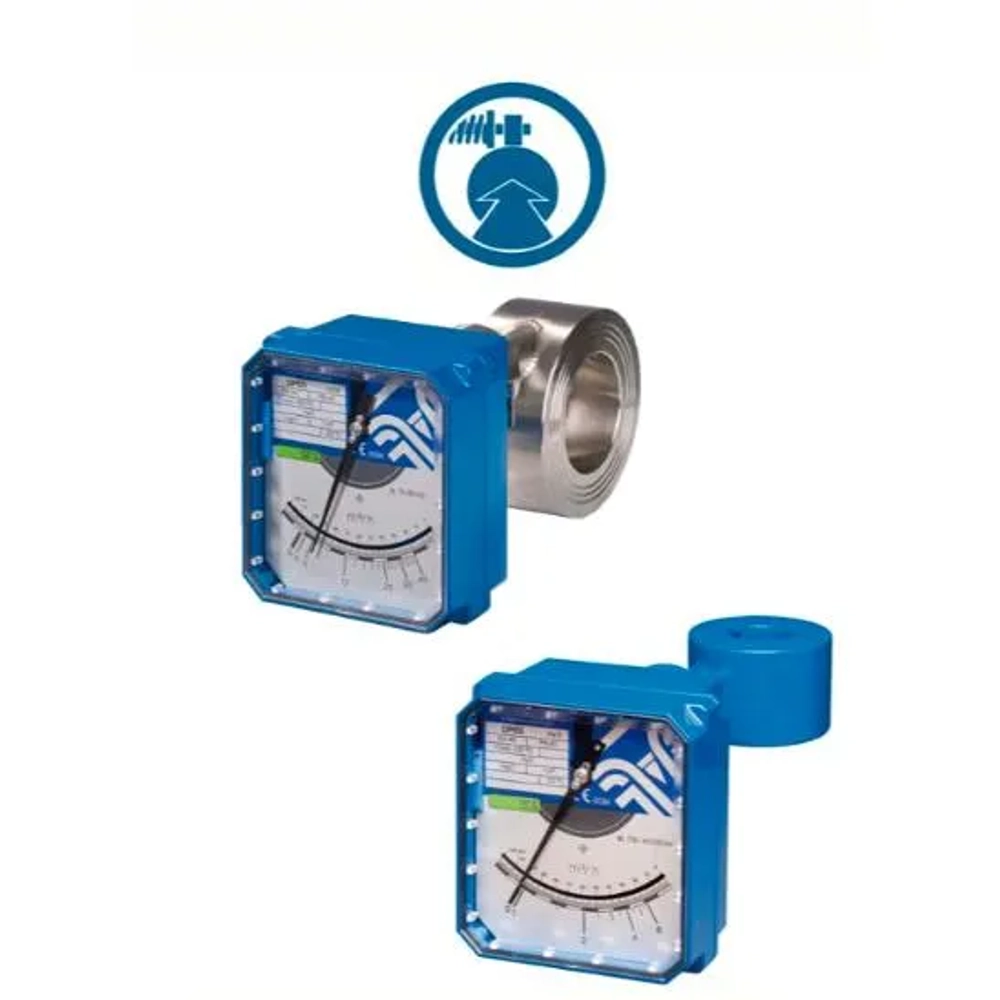

The Series DP target disk flowmeters are robust metallic devices used for measuring flow rates of liquids and gases. They feature a simplistic and durable metallic construction, compatible with all flow directions, and perform well under extreme pressure and temperature conditions. These flowmeters cause a low pressure drop and require only a short straight pipe run of 3 times the nominal diameter before and after the meter for accurate measurements. They are especially effective for fluids carrying suspended solids. Key specifications include: Flow rate ranges: Water from 0.8 to 1600 m³/h and Air from 45 to 24000 Nm³/h. Accuracy: ±2.5% of full scale, with an option for ±1.6%. Connections: DP65 model fits DN40 to DN300 pipe sizes using wafer flanges, while DP500 fits DN250 to DN500 with EN 1092-1 flanges, with other flange standards available on request. Materials used include EN 1.4404 (AISI 316L) stainless steel and plastic-coated steel. Local flow indication is provided. Additional options include: One or two limit switches. An electronic transmitter providing a 4-20 mA analog output, suitable for safe or hazardous areas with Ex ia IIC T4 or T6 protection and ATEX certification, with available HART protocol. Volume totalizers for local or remote use, with pulse output available except for Ex-certified transmitters. These flowmeters are versatile "all-terrain" instruments that provide reliable measurements even in challenging operating conditions, such as those involving particulate-laden fluids or fluctuating pressure and temperature. Their modular design and material options make them suitable for a wide range of industrial applications while supporting maintenance ease and durability.
