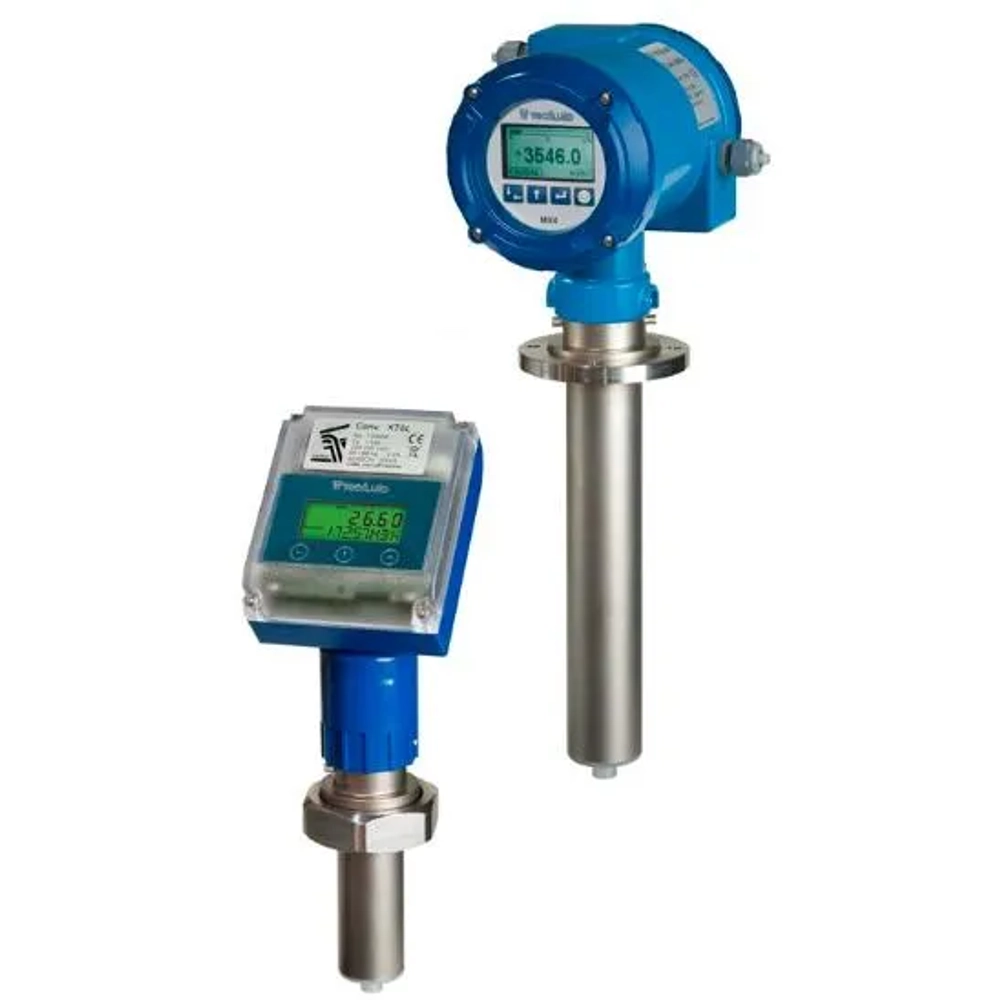

Tecfluid FLOMAT Insertion Mag Flow Meter DN 50

Name: Tecfluid FLOMAT Insertion Mag Flow Meter DN 50
Brand: Midstream Instrumentation

About this product

Electromagnetic Flowmeters Series FLOMAT – Insertion Flowmeter for Conductive Liquids The FLOMAT Series is a versatile insertion electromagnetic flowmeter engineered for accurate flow measurement of conductive liquids in large-diameter pipes. Manufactured by Tecfluid, it represents an economical and reliable solution for industrial applications requiring stable, maintenance-free flow control. Key Features and Benefits Economical solution for large pipelines: Optimized for pipe diameters ranging from DN40 to DN2000, the FLOMAT offers cost-effective measurement without compromising precision. High measurement stability: Readings remain independent of density, temperature, viscosity, and pressure, ensuring consistent performance across varied process conditions. Zero moving parts: Guarantees low maintenance, minimal pressure drop, and supports solid-laden liquids, ideal for demanding industrial operations. Reduced power consumption: Engineered for energy efficiency, ensuring sustainable, low-cost operation. Superior chemical resistance: Constructed from EN 1.4404 (AISI 316L) and PVDF, with electrode options in Hastelloy C, Tantalum, Titanium, and Zirconium, for maximum corrosion resistance across chemical, water treatment, and food-processing industries. Flexible installation options: Connection methods include TF Tecfluid standard flange, 2¼" BSP-F, and DN40 PN16 EN 1092-1 flange, with modular construction available in compact or remote converter versions. Advanced functionality: Includes local indication, volume totalizer, 4–20 mA analog output, and pulse output. Optional features include alarms, empty pipe detection, and HART/Modbus communication protocols. MX4 converter compatibility: Offers full diagnostic capability along with programmable settings and high-precision data monitoring. Technical Specifications Flow range: 2,300 l/h to 110,000 m³/h (H₂O) Accuracy: ±3.5% of reading value Minimum conductivity: 20 μS/cm Power Supply: 90–265 VAC or 12–48 VDC (depending on converter model) Operating temperature: Up to 130°C (remote version) Protection class: IP67 housing with coated aluminum converter enclosure Applications The FLOMAT Series is ideal for: Water and wastewater treatment plants Chemical and pharmaceutical production Food and beverage processing HVAC and industrial fluid systems Its robust design and outstanding chemical compatibility make it perfect for corrosive or high-pressure environments, ensuring long service life and dependable performance with minimal intervention.
