01 / 02About this product

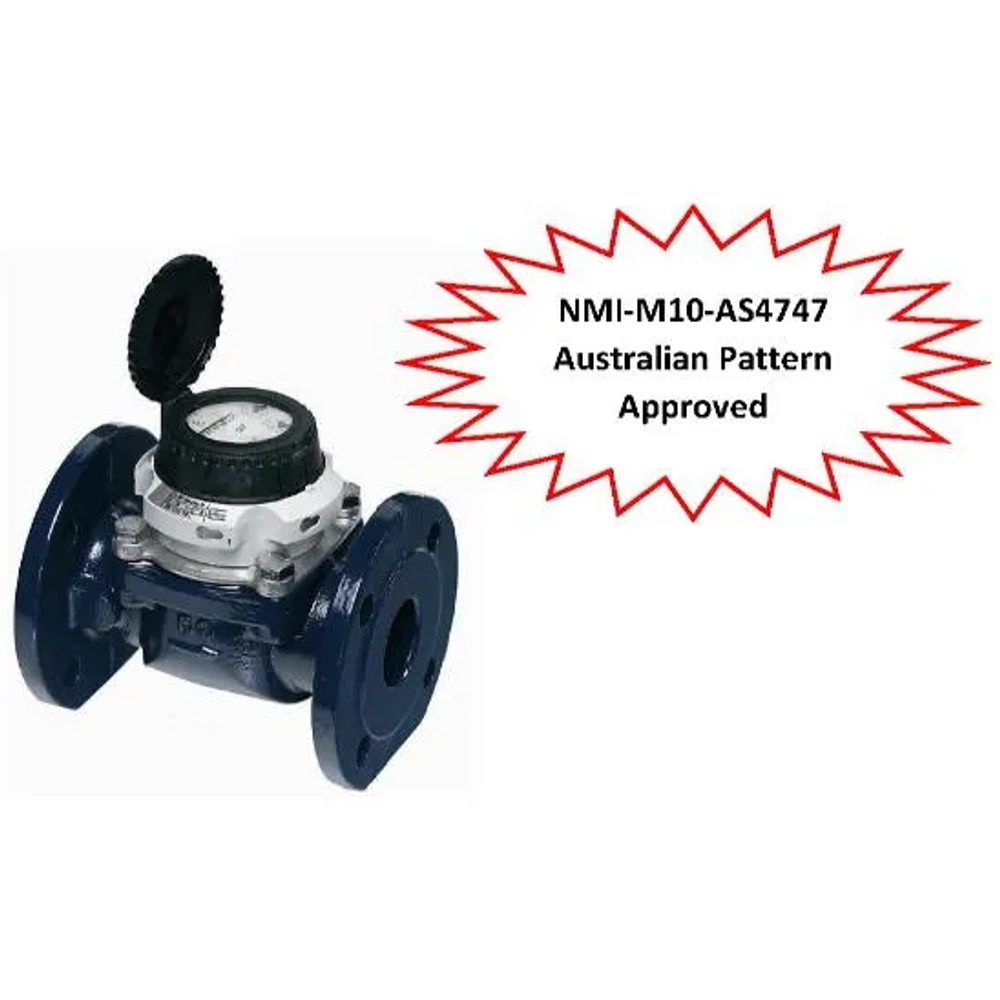

The WPD Woltmann helical rotary meter is a high-capacity, in-line solution built for sustained bulk metering applications. Designed with a straight-through flow path, the WPD achieves exceptional low pressure loss characteristics. This meter exceeds the requirements of Australian Standard AS 3565.1 and comes standard with NMI-M10 – AS4747 Australian Pattern Approval, including NSW DPIE certification. It features a 360° rotatable counter and operates at pressures up to 1600 kPa (PN16), ensuring maximum compliance and performance for cold potable water measurement.
- Water meter
- ManuFlo water meter
- Brookvale water meter
- Flow meter
Specifications
- Meter Body
- Cast iron
- Unit
- Cubic meters per hour (m^3 /h
- Type
- Magnetic
